This project focuses on utilizing waste heat from exhaust gases to generate steam, which is then used to drive a steam turbine for additional power production. By capturing thermal energy that would otherwise be lost, the system improves overall efficiency and reduces fuel consumption in industrial processes. The project includes the design of a steam generation system, and turbine setup, along with performance analysis through simulations. It offers a sustainable solution for enhancing energy utilization in various industries.
Objectives
1. To design a system that captures waste heat from high-temperature exhaust gases emitted by industrial or engine processes.
2. To utilize the recovered heat to generate steam through an appropriate heat exchanger or boiler setup.
3. To operate a steam turbine using the generated steam and convert thermal energy into mechanical or electrical power.
4. To conduct thermodynamic analysis and performance evaluation of the complete system using simulation tools such as MATLAB.
5.To evaluate the overall efficiency improvement and feasibility of integrating such a system in industrial setups.
6. To assess the economic feasibility and environmental benefits of implementing the system in real-world industrial applications.
7. To optimize the design of the heat recovery unit for maximum thermal energy transfer from exhaust gases to the steam generation system.
8. To select appropriate materials for the heat exchanger and turbine components to ensure durability and efficiency under high-temperature conditions.
9. To investigate the performance of different working fluids (e.g., water, organic fluids) for steam generation based on exhaust gas temperature levels.
10. To design a control system for regulating steam pressure and flow rate to ensure safe and stable turbine operation.
11. To compare the performance of open-loop vs. closed-loop steam cycles for integration with exhaust heat recovery systems.
12. To perform an environmental impact assessment to evaluate reductions in carbon emissions and fuel consumption achieved through heat recovery.
13. To develop a scalable model of the system suitable for implementation in various industrial sectors (e.g., cement, chemical, steel, marine engines).
14. To identify potential challenges in retrofitting existing plants with this technology and propose solutions for practical deployment.
Socio-Economic Benefit
The implementation of a system that utilizes exhaust gases for steam turbine operation offers multiple socio-economic benefits. These advantages contribute not only to industrial efficiency and cost savings but also to broader environmental and social well-being. Key benefits include:
1.??Energy Efficiency Improvement
By capturing and reusing waste heat, the system significantly increases overall energy efficiency in industrial processes. This leads to reduced primary energy consumption and better utilization of existing fuel sources.
2.??Reduction in Fuel Costs
Recovering heat from exhaust gases reduces the need for additional fuel to generate power or steam. This results in lower operating costs for industries, particularly those with high thermal energy demands.
3.??Lower Carbon Emissions
By maximizing energy use and reducing fuel consumption, the system directly contributes to lowering greenhouse gas emissions and pollutants, helping industries with environmental regulations.
4.??Enhanced Industrial Competitiveness
Reduced energy expenses and improved efficiency enhance the global competitiveness of industries, allowing them to produce goods at lower costs and with smaller environmental footprints.
5.??Job Creation and Skill Development
The design, installation, operation, and maintenance of waste heat recovery systems create demand for skilled labor in fields such as mechanical engineering, thermal system design, and renewable energy technologies.
6.??Promotion of Sustainable Practices
Adoption of this technology encourages industries to move toward greener, more sustainable practices, aligning with national and global goals such as energy conservation and climate change mitigation.
7.??Support for Energy Security
By reducing dependence on imported fuels and maximizing local energy resources, such systems support national energy security and long-term energy planning.
8.??Inspiration for Innovation
Projects like this can inspire research and innovation in other forms of waste heat recovery, renewable energy integration, and smart industrial design, promoting a culture of engineering advancement
Methodologies

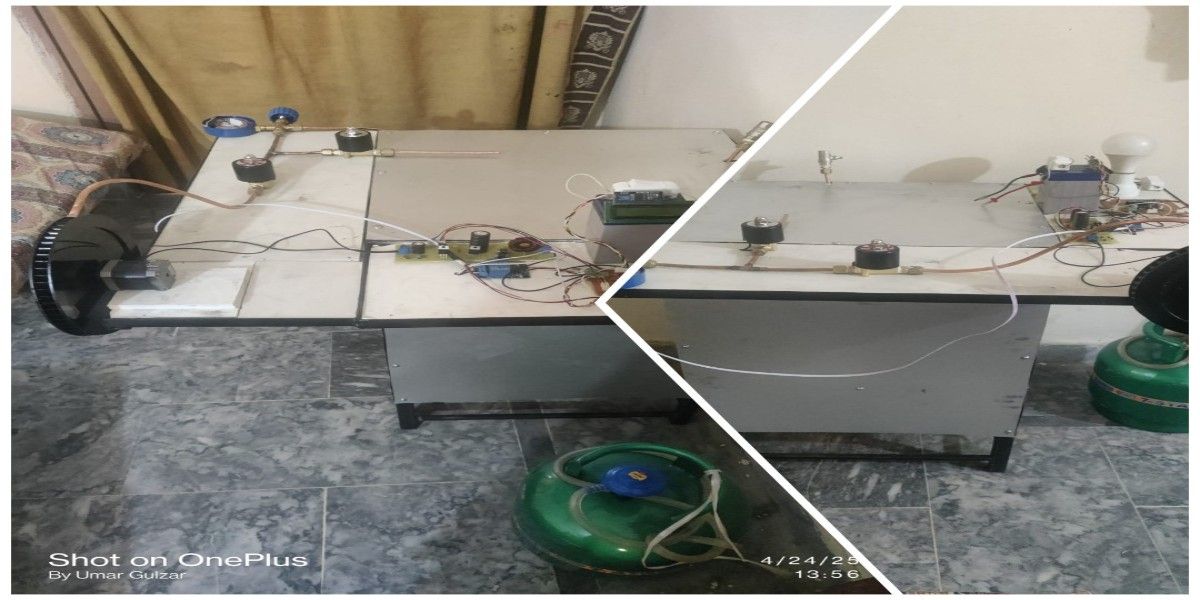

The project is designed by using the Boiler as a steam generator and cylinder as a heat generator, and after that the steam from boiler is directly hit to the turbine by controlling it with the Solenoid Valve controlled with the relays and integrated with Arduino for controlled operation of turbine. The output of the DC Stepper Motor is Given to the Rectifier to covert into DC Current , after it the voltage is given to the Buck Boost Converter to get a constant Output Voltage. This Constant DC Output Voltage is given to the battery for charging of Battery and these voltages also given to the inverter to convert it into AC Current for Running AC loads. Although the software is also integrated with it to control the operation. The LCD shows the Battery and Turbine Voltages on its display. These electronics Components are powered by the battery voltage by Step down it through Buck Converter.
Outcome
The project successfully demonstrated the technical feasibility and practical benefits of utilizing exhaust gases to operate a steam turbine for additional power generation. Through detailed system design, thermodynamic analysis, and simulation using tools like MATLAB and EES, it was shown that a significant portion of waste heat—typically lost to the environment—can be effectively recovered to produce useful steam energy. This not only improved the overall efficiency of the energy system but also led to potential fuel savings and reduced greenhouse gas emissions. The project’s outcomes highlighted the economic and environmental advantages of implementing such systems in industrial applications, while also enhancing the technical knowledge and design skills of the project team. The solution offers a scalable and sustainable approach to energy recovery, with promising potential for real-world adoption in various sectors.
